Haltech  |  SKU: HT-220204

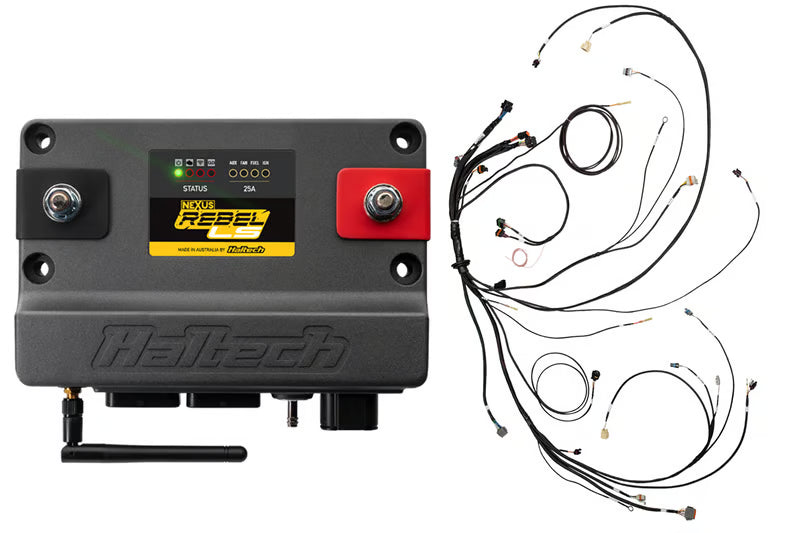

Haltech NEXUS Rebel LS - Suits Gen IV

$2,245.50 $2,495.00
Tax included Shipping calculated at checkout.

Description
Add GM 4L Transmission Support
Click here


Suits: Gen IV LS - 6-pin DBW, EV6 Injectors, Manual Transmission



With the Rebel LS, all the hard work is done. It is the best, quickest, and easiest way to get your LS-swap up and running!
ECU designed from the ground up to suit GM's popular LS engine platform
Start-up is a breeze thanks to the new LS Set-up Wizard in our NSP software
Comes complete with an easy-to-install harness to suit multiple GM LS applications
Easy integration with Haltech dashes, PDMs, sensor kits, and accessories
Kit Supports Gen IV engines with drive by wire (DBW).

Kit Includes:
  • HT-220001 - Rebel ECU
  • HT-186500 - Main Harness

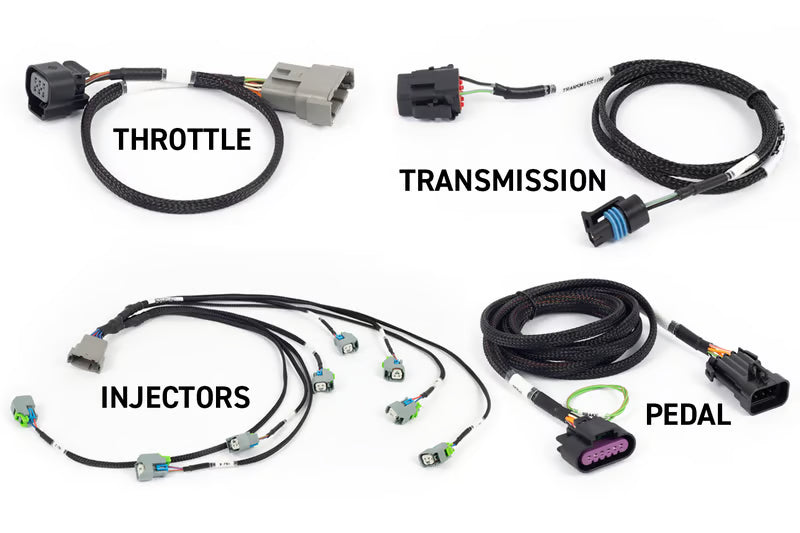

  • HT-186505 - 6 Pin DBW Adaptor
  • HT-186507 - Corvette pedal adaptor
  • HT-186502- LS EV6 Injector Sub-Harness
  • HT-187003 - T56 Transmission Harness

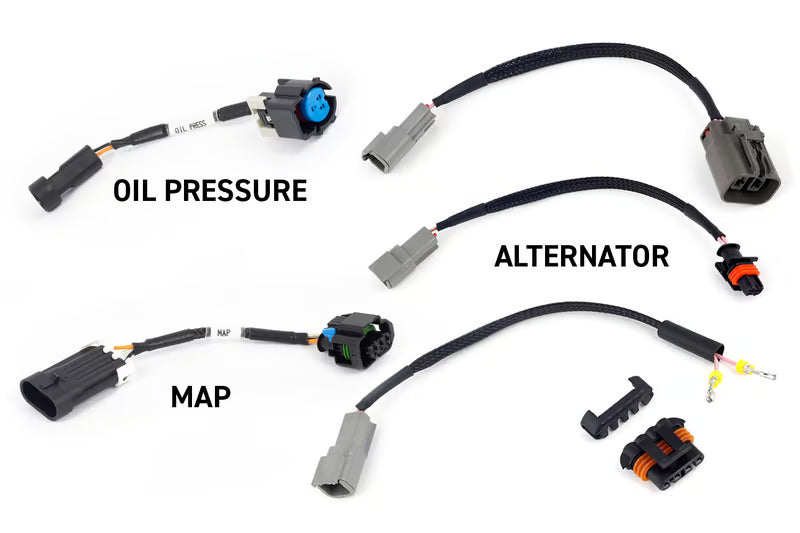

  • HT-186123 - 2 Pin Bosch Alternator Harness
  • HT-186124 - 4 Pin Delco Alternator Harness
  • HT-186125 - 2 Pin Yazaki Alternator Harness
  • HT-186510 - Gen IV Oil pressure sensor adaptor harness
  • HT-186511 - Gen IV MAP sensor adaptor harness

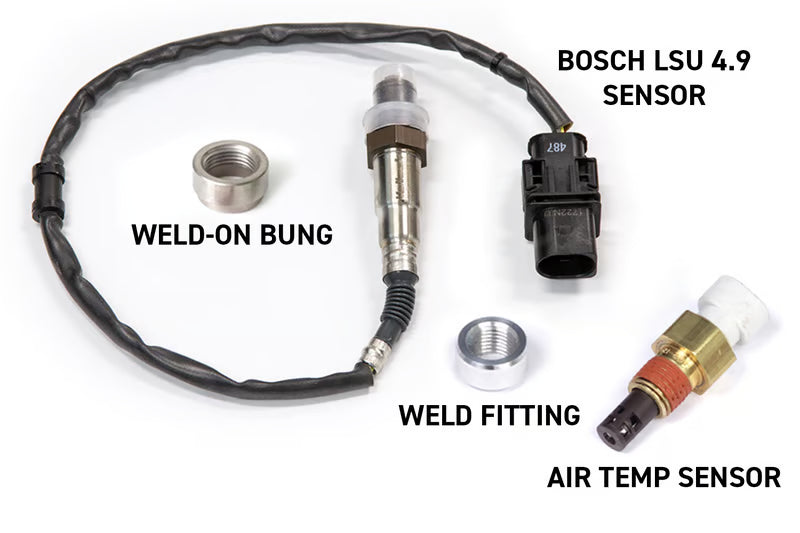

Sensor Pack
  • Bosch LSU 4.9 Sensor
  • Weld on fitting for O2 Sensor
  • Air Temperature Sensor M14 x 1.5
  • Weld on fitting for Air Temp Sensor
