PSR PRO106 Compressor Inducer 3000HP 106mm Turbo

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion
• 13 Blade PTG-Aero billet compressor wheel 106mm inducer produces up to 3000 hp
• 9 Blade PTG-Aero Inconel 713c turbine wheel with more turbine flow
• Fin cooled aluminum center housing, lighter weight
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• Outline interchangeable with GTX55 Gen II turbos

Size Specifications

• Compressor Wheel: 106*144mm
• Turbine Wheel: 118*112mm
• Compressor Inlet: 6” Hose
• Compressor Outlet: 4” V-band
• Compressor Housing A/R: 0.96
• Turbine Inlet: 3.5” V-Band
• Turbine Outlet: 5” V-Band
• Turbine Housing A/R: 1.25

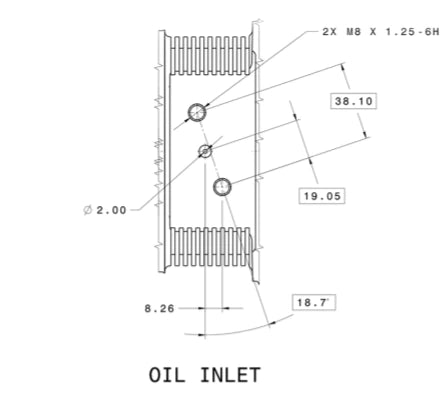

• Oil Feed: See graph below(OIL INLET) (1mm restrictor will be needed, prevent higher than 45psi oil pressure into turbocharger’s internals)

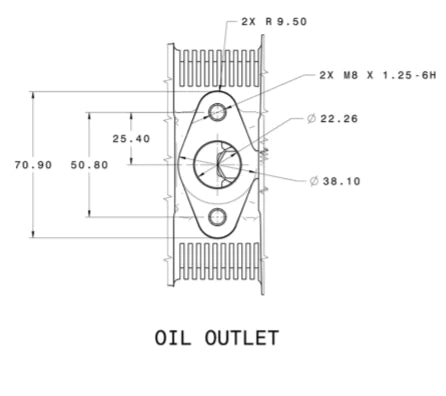

• Oil Drain: See graph in pictures (OIL OUTLET)
