Walbro 525LPH Fuel Pump w/ Fitting Kit

Walbro / TI Automotive 525LPH Unleaded & E85 In Tank Fuel Pump.  This is the latest and greatest version of the venerable Walbro 460LPH pump, with even higher flow than ever.

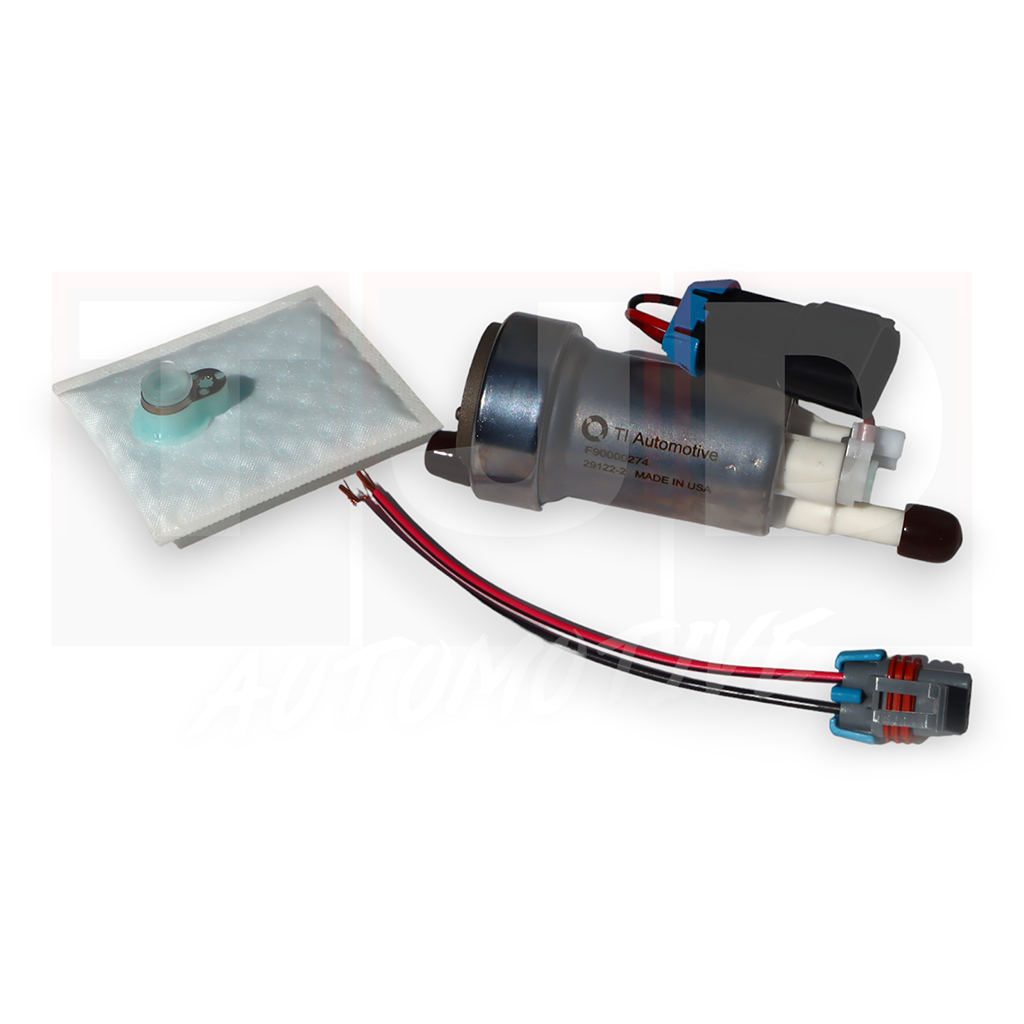

Comes complete with installation kit including fuel pump, wire harness, and pickup filter.

The Walbro 525LPH fuel pump flows enough fuel to support 900hp and is ideal for very high power boosted applications running E85/Ethanol, or anywhere a Walbro 255 or Walbro 460 fuel pump won’t flow enough.

Specifications

• Flow rate: 525 lph @ 13.5v (3 bar)
• E85 Compatible: Yes
• Max current draw: 25A (Make sure your wiring can handle this beast!)
• Body Diameter: 39mm / 50mm
• Length: 131mm
• Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm)
• Pressure Relief: 112psi
• Check Valve: Yes (Inbuilt)
