Pulsar Turbo

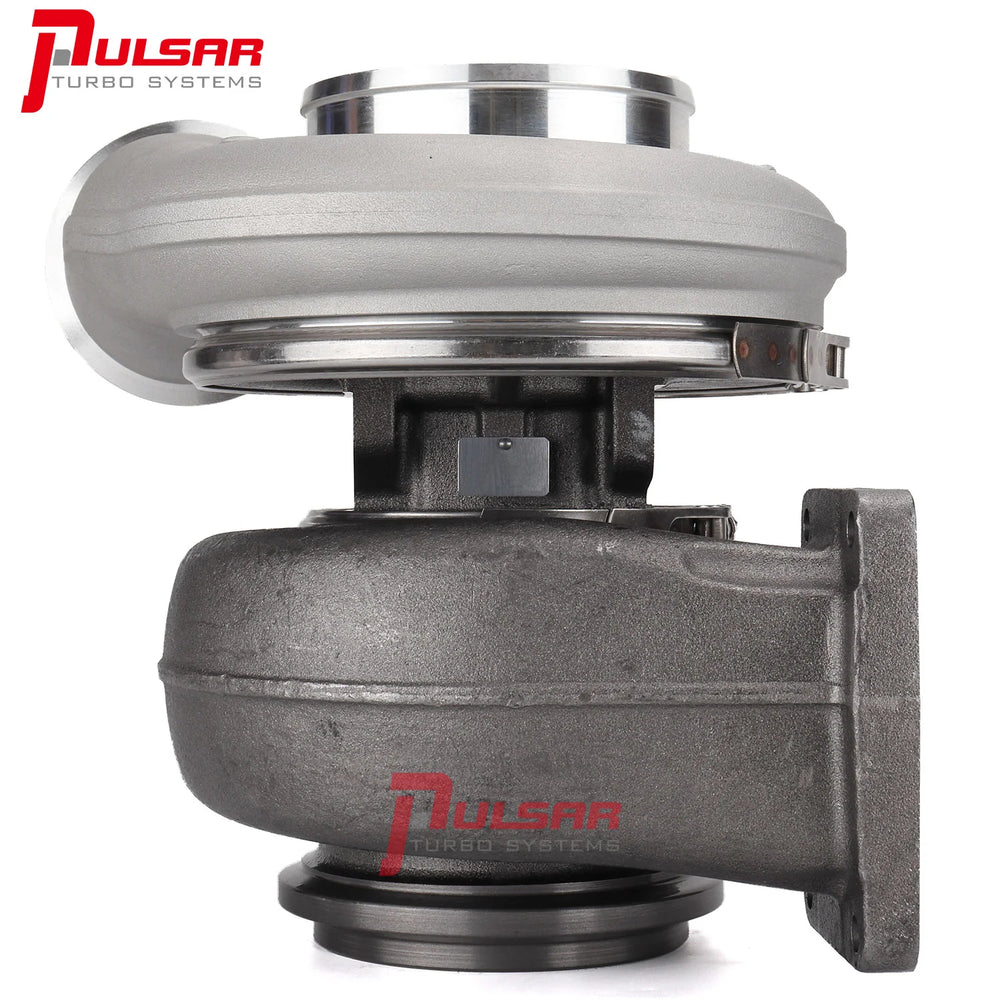

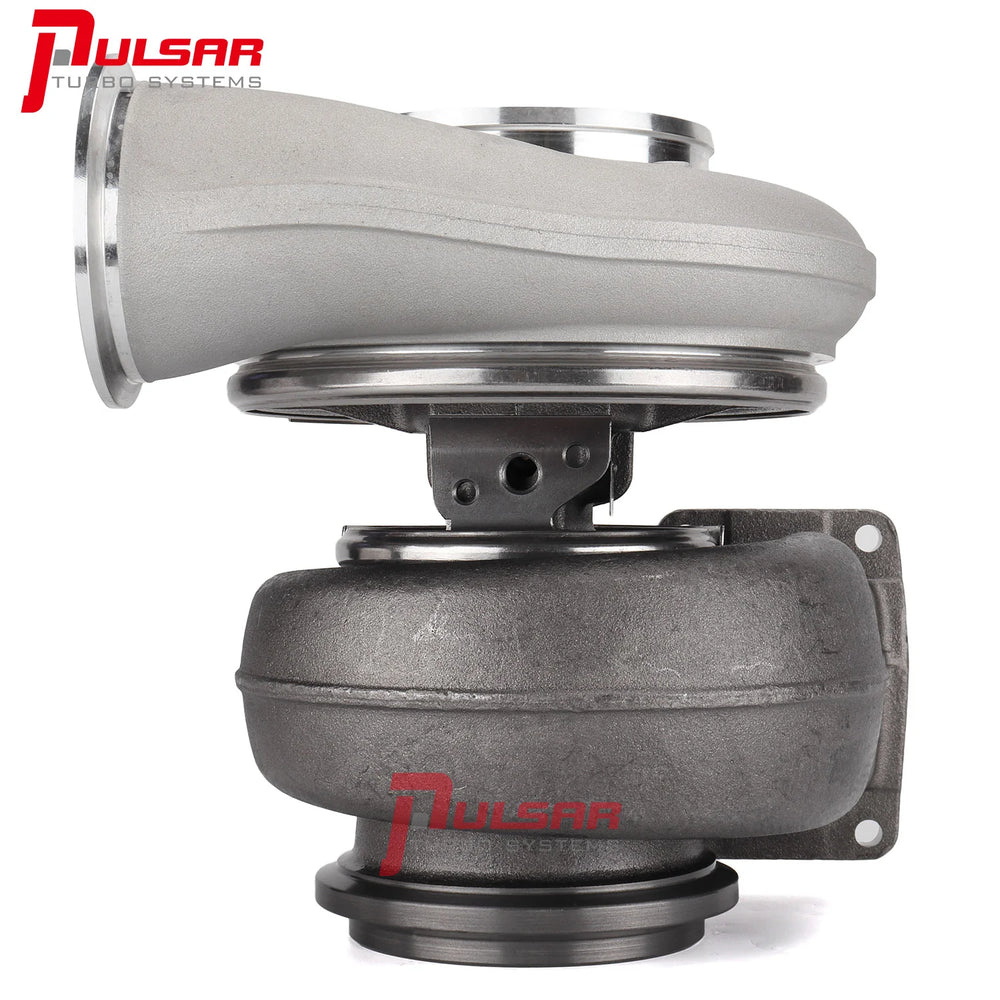

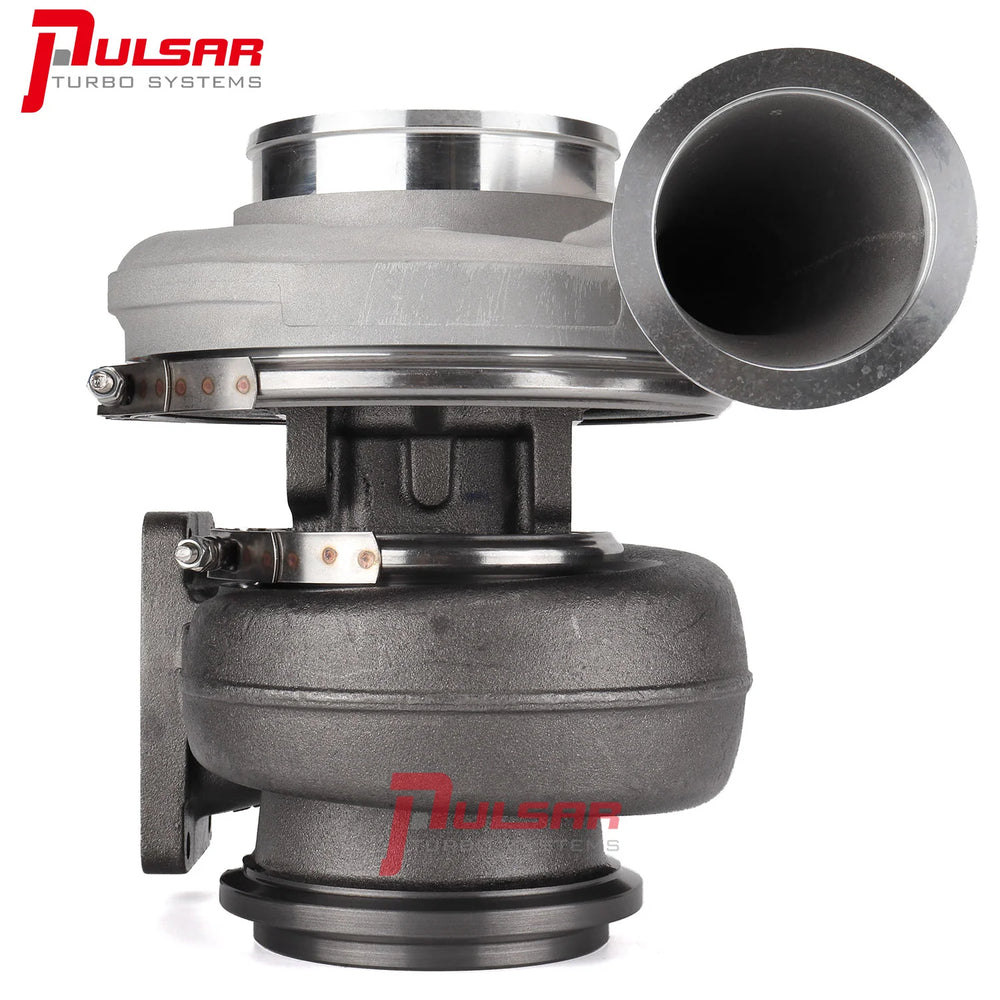

PULSAR Billet S480 Turbo with 96mm Turbine wheel

$1,275.00
Tax included Shipping calculated at checkout.

Description

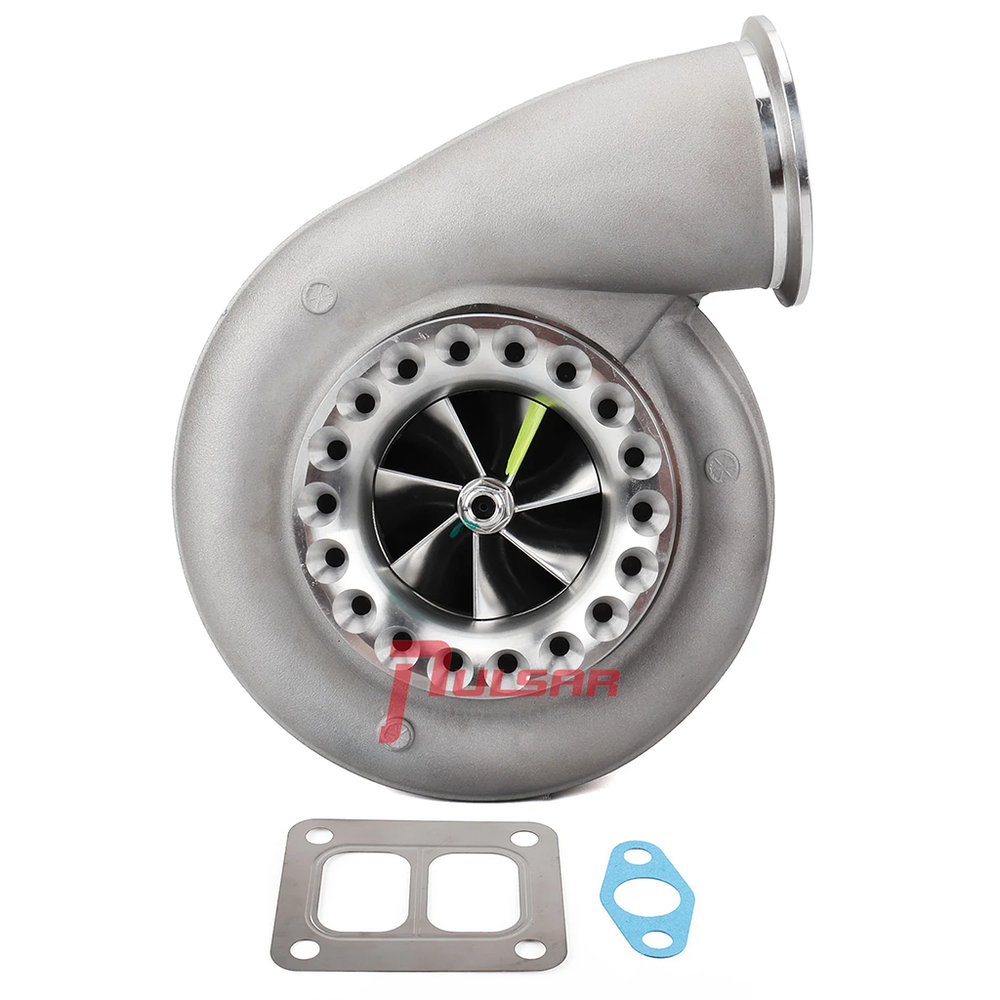

  • 7+7 blades 80*113mm billet compressor wheel with extended tip technology for the ultimate in aerodynamics

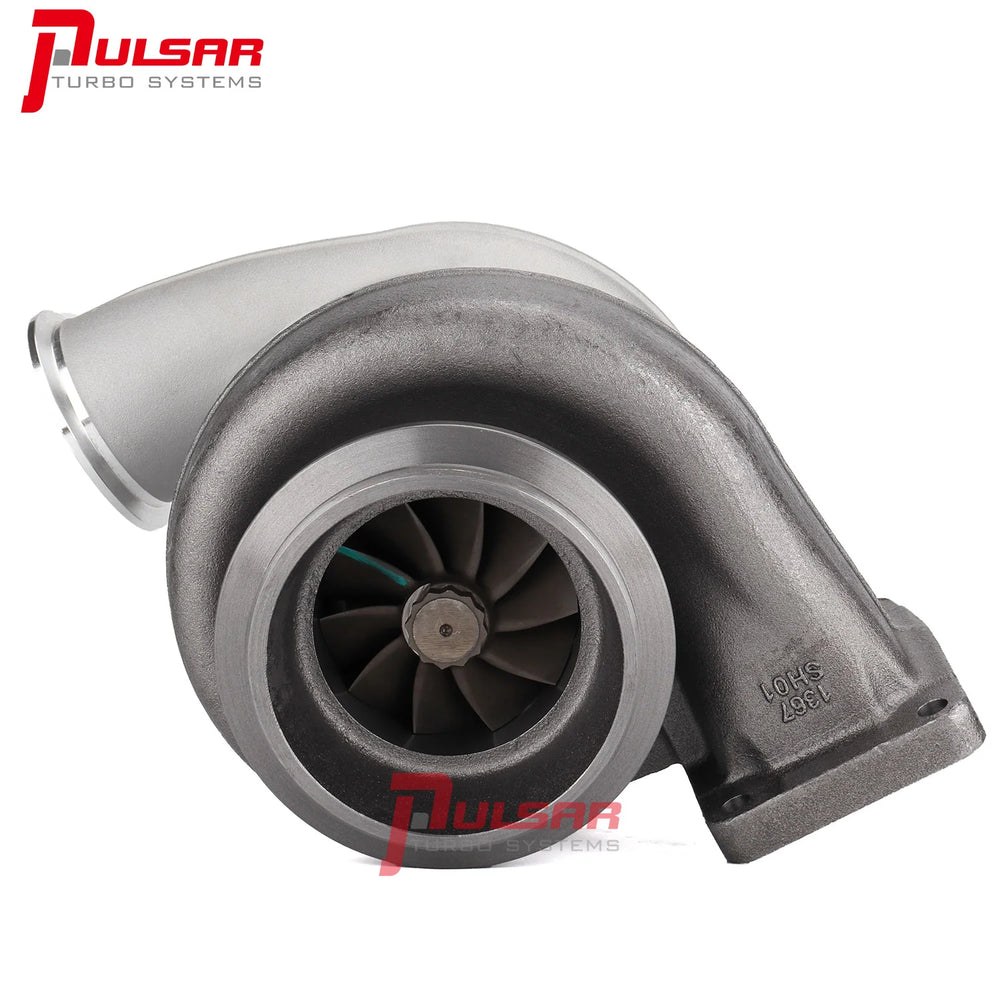

  • S400 96*88mm Inconel 713 turbine wheel for high-temperature operation

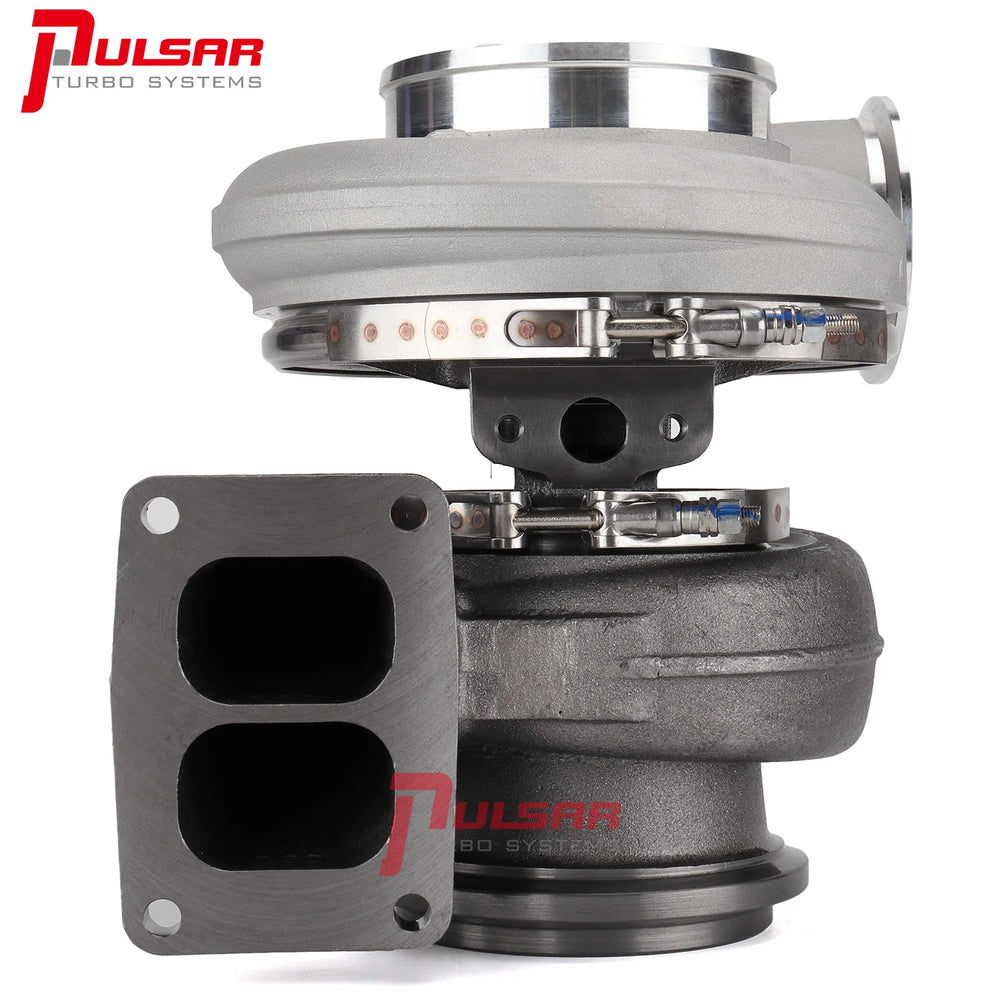

  • T6 Divided turbine housings in 1.32A/R or 1.58 A/R with 5″ V Band Outlet 5.75 OD Marmon flange
  • T4 Divided turbine housing in 1.25 A/R or 1.10 A/R
  • Compressor flow rated at 120 lb/min capabilities ranging from 750 to 1400 horsepower

Size Specifications

  • Compressor Wheel: 80*113mm
  • Turbine Wheel: 96*88mm or 83*74mm
  • Compressor Inlet: 5″ Hose
  • Compressor Outlet: V-Band
  • Turbine Inlet: T6 or T4
  • Turbine Outlet: 5.75″ Marmon(T6) or 4″ V-Band(T4)
  • Oil Feed: 1/4 NPT
  • Oil Drain: Std T6 Drain Flange
  • Outlet Flange and Clamp not included

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Pulsar Turbo

PULSAR Billet S480 Turbo with 96mm Turbine wheel

From $1,275.00

Size Specifications

Turbine (Rear) housing options

  • T6 Divided 1.32 A/R
  • T6 Divided 1.58 A/R
  • T4 Divided 1.25 A/R
  • T4 Divided 1.10 A/R (83*74mm Turbine Wheel)

Add Turbine Outlet Flange and Clamp 4" (T4 Variants only)

  • No
  • Yes

Add Turbine Outlet Flange and Clamp 5" or 5' to 4" (T6 Variants only)

  • No
  • Yes 5"
  • Yes 5" to 4"
