Raceworks  |  SKU: RWH-230-12-1M

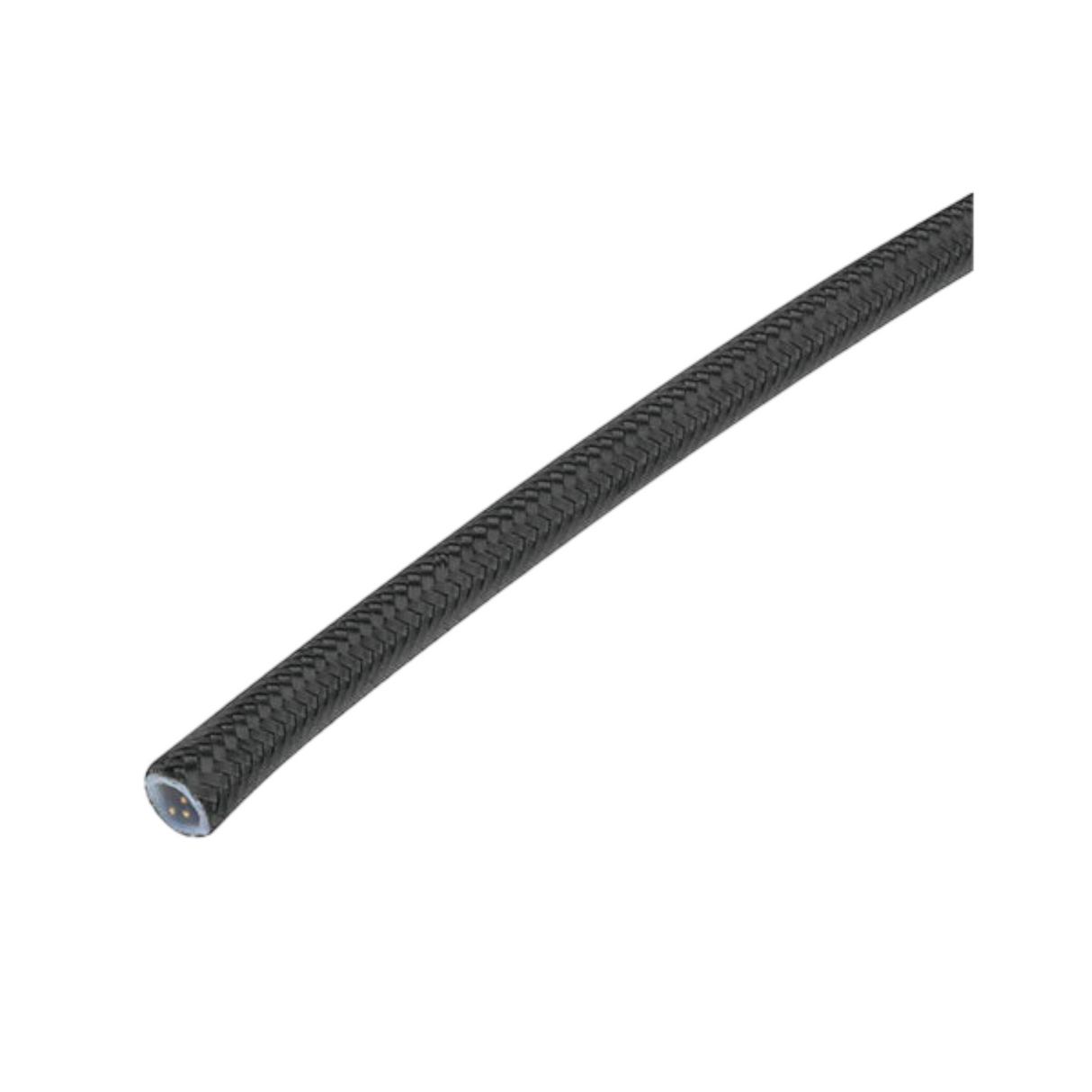

Raceworks 230 Series Black Stainless Braid over PTFE Hose - (AN-12)

$89.99
Tax included Shipping calculated at checkout.

Description

Raceworks 230 Series PTFE Black Braided Hose is constructed from a PTFE inner tube that is compatible with all fuels, oils, nitrous including brake and clutch fluids. The PTFE tube as a Black Electroplated Stainless Outer Cover that is durable and resistant to expansion. The Raceworks 230 Series Hose is the best option for use on fuel systems as it won’t allow the permeation of fuel smell, and has the highest pressure and temperature rating in the range of Raceworks hoses. All Raceworks products come with a 2 year warranty.

Temperature Range: -70degC to 250degC. Ethanol & Methanol Safe

If you are chasing lengths over 10M, please contact us.

Size Operating Pressure Burst Pressure Inside dia Inch Inside dia mm Outside dia Inch Outside dia mm Weight (gm/m) Bend Radius (Inch) Bend Radius (mm)
AN-3 3000psi 10000psi 1/8″ 3.1mm 1/4″ 6.4mm 64g 55/64″ 22mm
AN-4 3000psi 10000psi 3/16″ 4.7mm 5/16″ 7.9mm 77g 1-1/32″ 26mm
AN-6 2500psi 9000psi 5/16″ 7.9mm 15/32″ 11.8mm 120g 1-1/2″ 38mm
AN-8 2000psi 7000psi 13/32″ 10.5mm 17/32″ 13.3mm 140g 1-7/8″ 48mm
AN-10 1500psi 5000psi 17/32″ 13.4mm 41/64″ 16.2mm 202g 2-7/16″ 62mm
AN-12 1200psi 4500psi 41/64″ 16.2mm 49/64″ 19.3mm 248g 3-5/32″ 80mm
